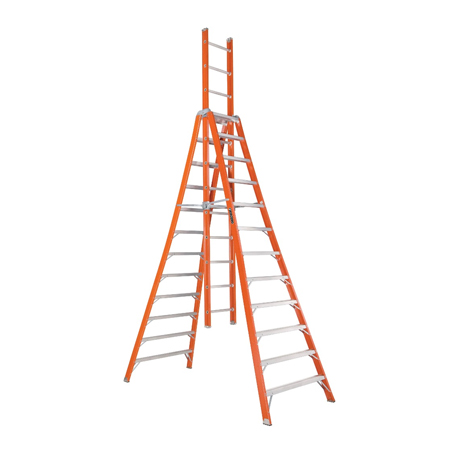

Extra heavy duty and non-conductive fiberglass, 300 lbs. rated extension trestle for free-standing extension needs.
Designed for climbing from either side. Also ideal for use with scaffold planks.
Designed to accommodate planks up to 14″ wide when trestles are used in pairs.
Fly section is not designed for use as a single ladder.
Material: Fiberglass
Duty Rating: IAA
| Model | FX1108 | FX1110 | FX1112 |
| Style | Trestle | Trestle | Trestle |
| Duty Rating | Type IA | Type IA | Type IA |
| Load Capacity | 300 lbs | 300 lbs | 300 lbs |
| Size | 8′ | 10′ | 12′ |
| Number of Steps | 12 | 15 | 18 |
| Rung Type | Standard Step/ Round Rung | Standard Step/ Round Rung | Standard Step/ Round Rung |
| Step Depth | 3” | 3” | 3” |
| Material | Fiberglass | Fiberglass | Fiberglass |
| Extended Length | 12′ 6” | 15′ 6” | 19′ 6” |
| Rail Depth | 3 1/4” | 3 1/4” | 3 1/4” |
| Section Length | 8′ | 10′ | 12′ |
| Max. Standing Height | 8′ 8” | 10′ 7” | 14′ 5” |
| Max. Reach | 15′ 2” | 17′ 1” | 20′ 11” |
| Weight | 65 lbs | 90 lbs | 115 lbs |
| Approx. Spread | 70 1/2” | 85 3/8” | 100” |
| Bottom Width | 33 1/2” | 39 1/2” | 45 1/2” |
| Closed Cubic Feet | 27 4/5″ | 39 5/6″ | 54″ |
| Closed Height | 110 1/4” | 134” | 158” |
| Closed Depth | 13” | 13” | 13” |
| Closed Width | 33 1/2” | 39 1/2” | 45 1/2” |
